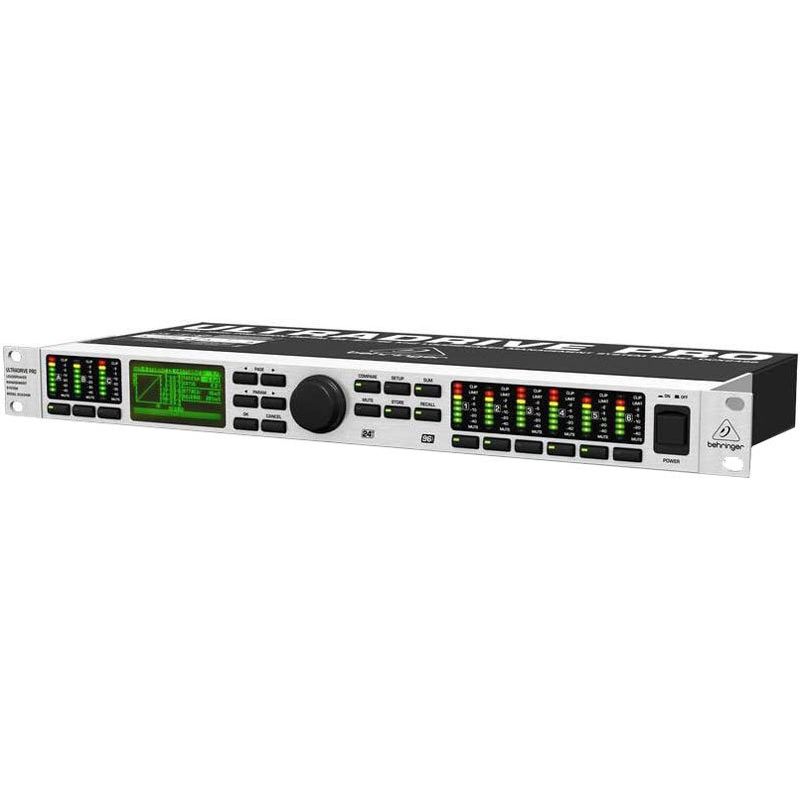

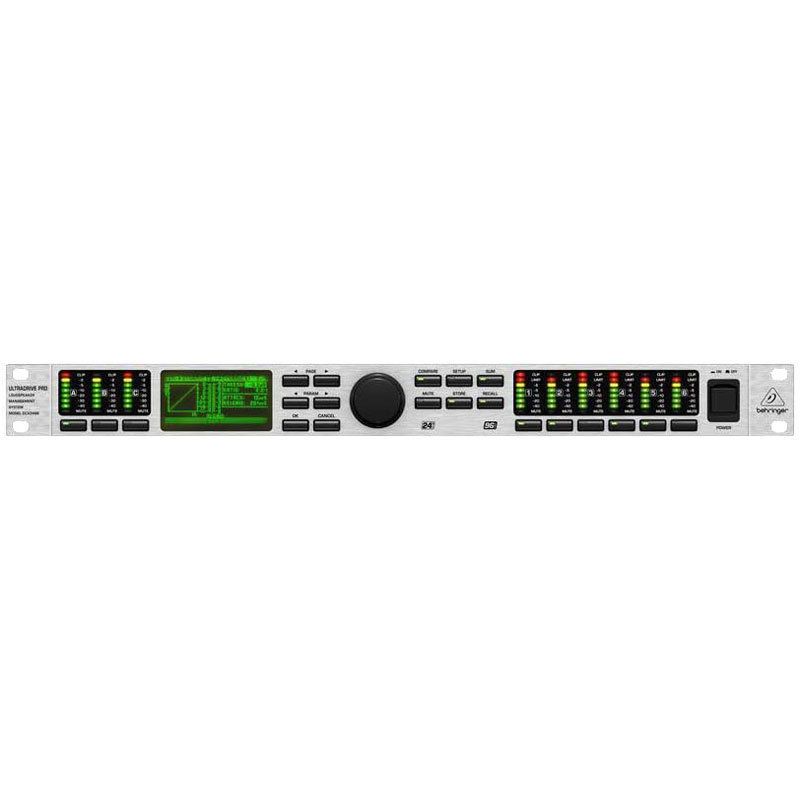

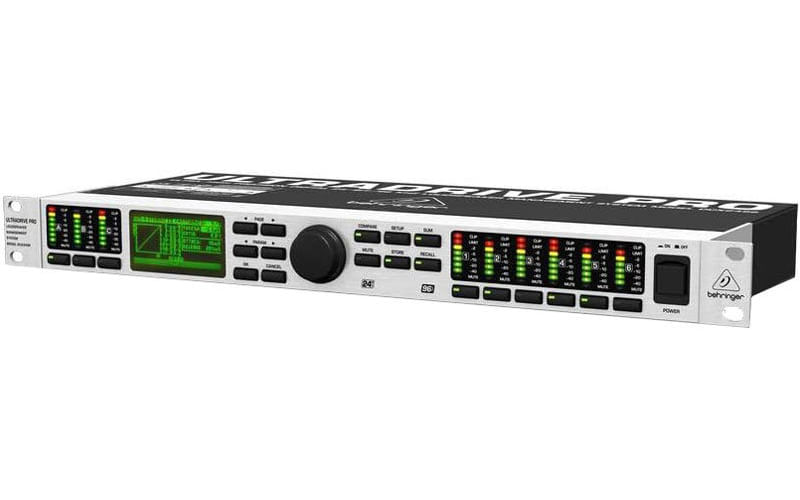

• 3 analog inputs (one suitable as digital stereo AES/EBU input) and 6 analog outputs for maximum flexibility
• High-end 96 kHz converters for ultimate signal integrity and wide dynamic range (120 dB)
• Integrated sample rate converter for easy connection of external digital signals with sampling rates from 32 to 96 kHz
• Precise Dynamic EQs for level-dependent equalization and extremely musical Parametric EQs, selectable for all inputs and outputs
• Several types of EQs (LP/BP/HP) for each input and output
• "Zero"-attack Limiters on all output channels for optimal speaker protection
• Four different mono and stereo output operating modes
• Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave
• Adjustable Delays for all inputs and outputs—allow manual or automatic correction for room temperature, phase and arrival time differences
• Additional Sum signal derived from the A/B/C inputs offers a fourth internal input signal
• Free ULTRADRIVE PRO software enables total control via PC through RS-232 and RS-485 interfaces
• Link option via RS-485 network interface enables cascading of several ULTRADRIVE PROs
• 60 user-defined internal presets storable

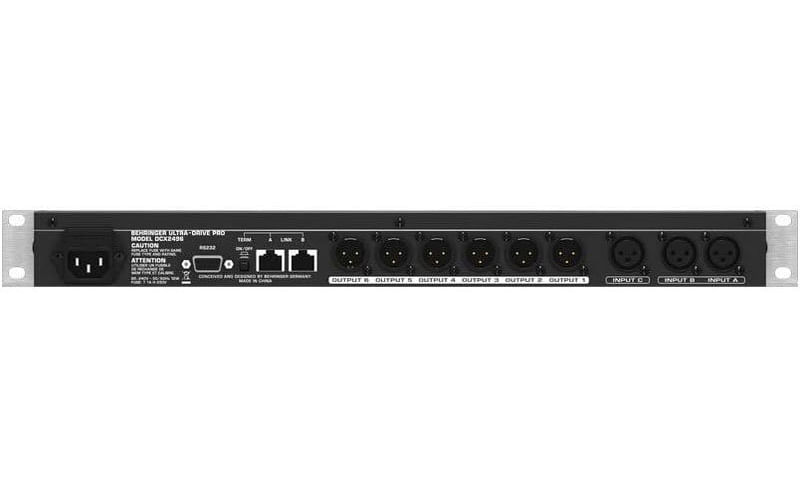

• Servo-balanced, gold-plated XLR connectors for all inputs and outputs• Internal switch-mode power supply for maximum flexibility (100
• - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• High-quality components and exceptionally rugged construction ensure long life
• Conceived and designed by BEHRINGER Germany
