Gator Rackworks Hinged Wall Mounted Rack; 12U, 21" Deep; Vented Glass Front Door

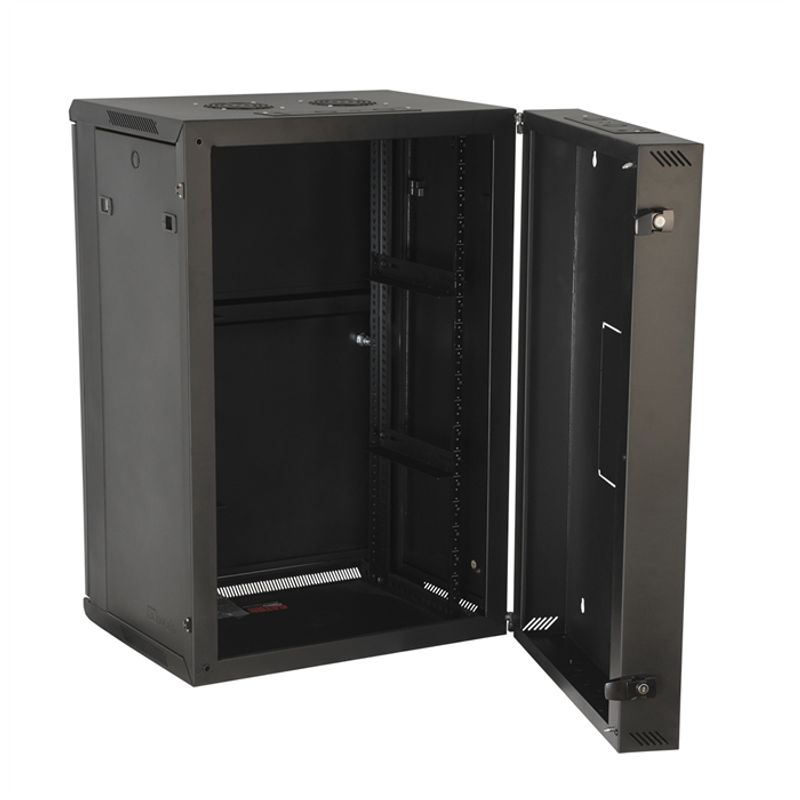

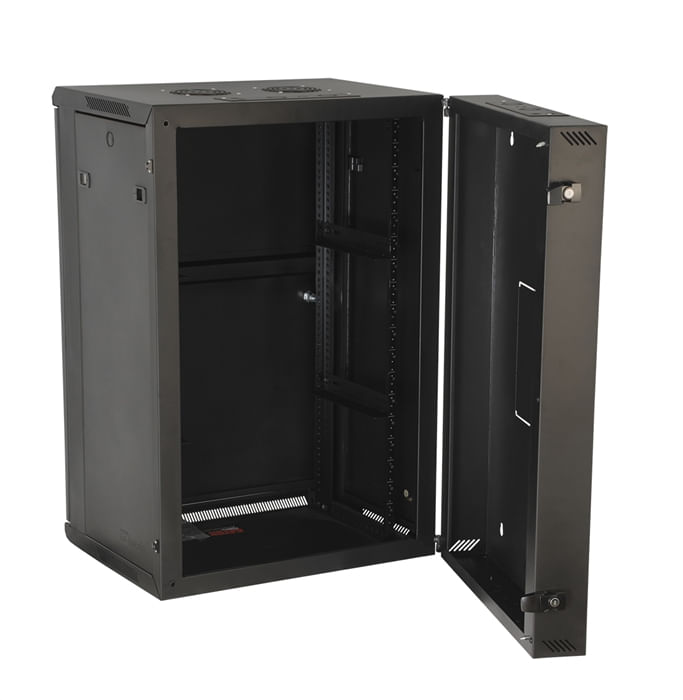

• Hinged back double section welded frame construction

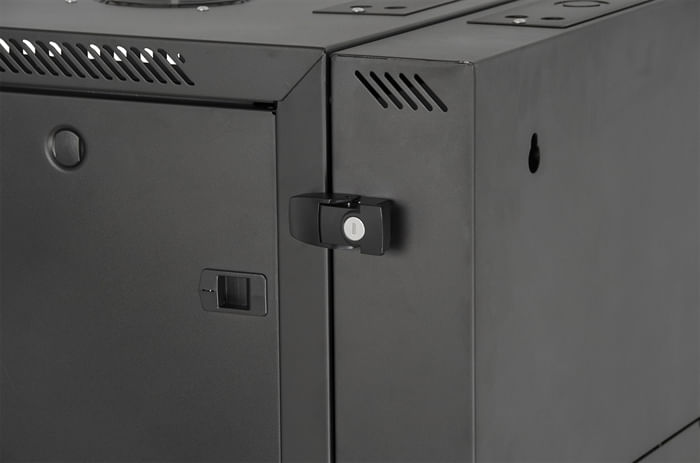

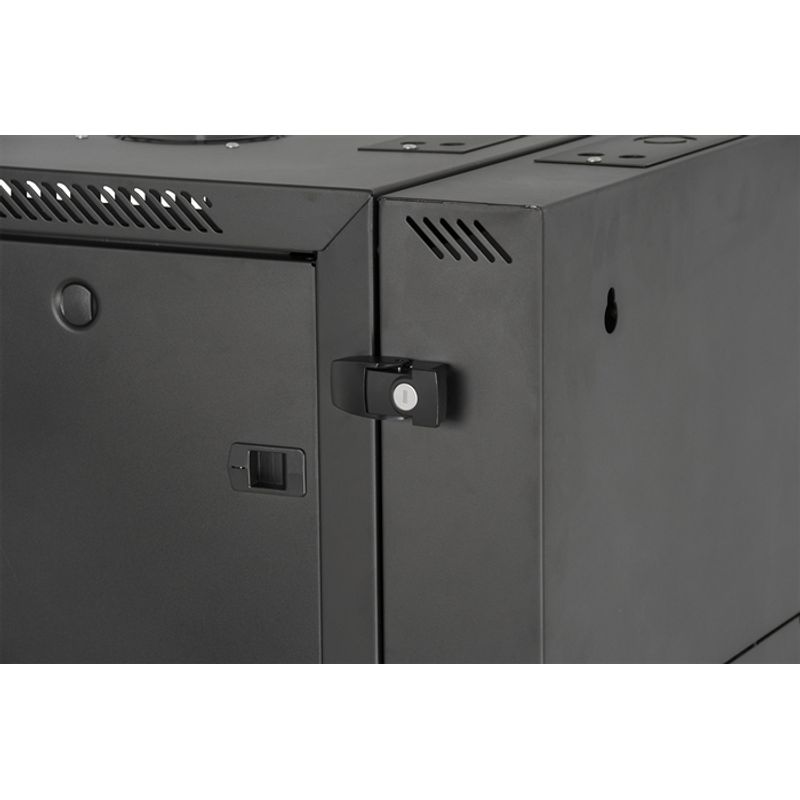

• 18 gauge removable side panels with spring latch
• 18 gauge SPCC cold rolled steel top and bottom

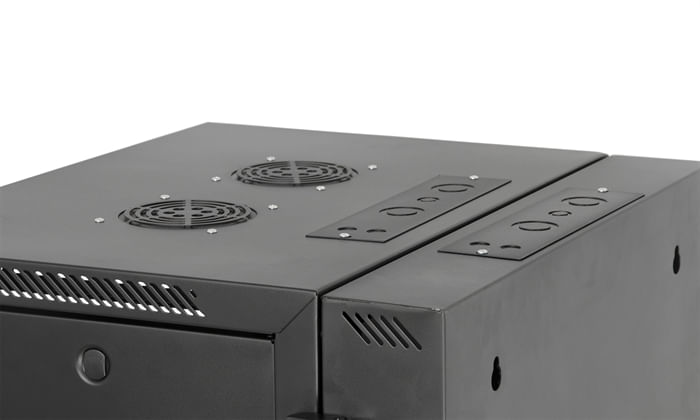

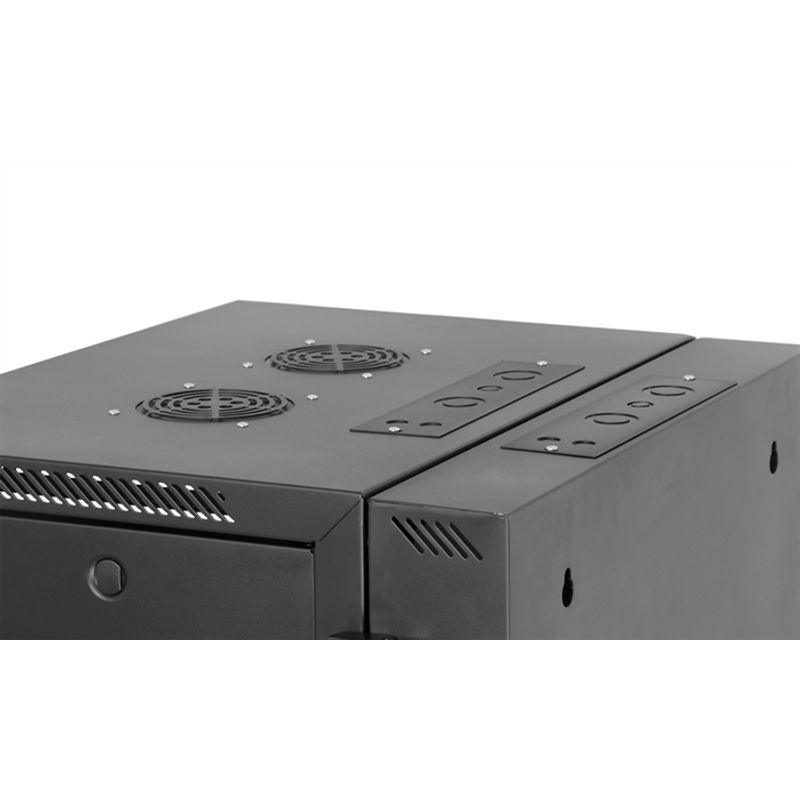

• Fan ready perforated top

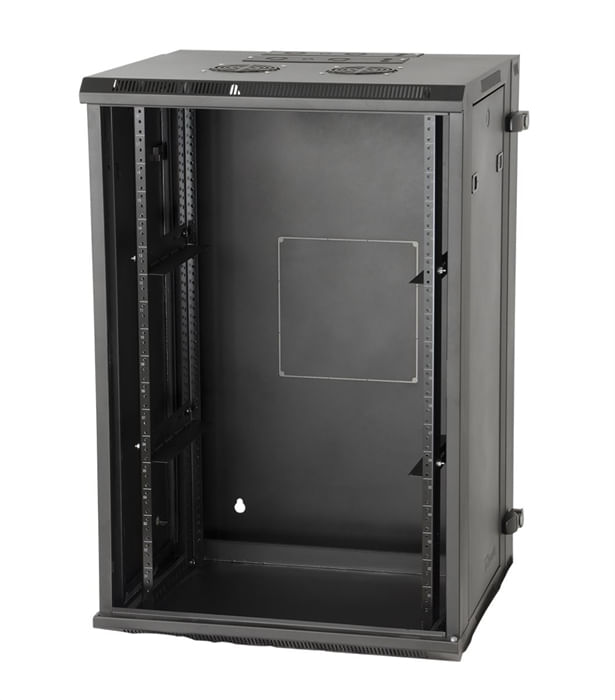

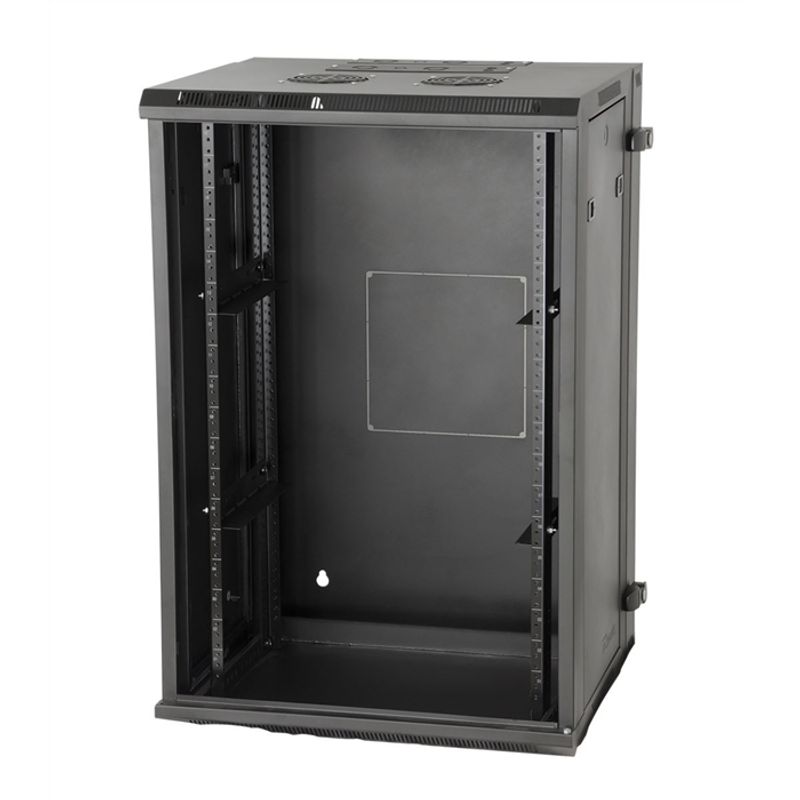

• 11 gauge drilled and tapped front and rear rack rails
• Rack U number printed on the rack rails
• 10/32 rack screws
• 1/2", 5/8", 3/4", 1"1 and 1 1/2" cable entry knockouts on top and bottom
• 5/8" knockout design to be used for VHF/UHF antenna
• 10" x 10" rear access knockout for cable entry
• Front door features toughened glass with vented sides and spring loaded push and turn locking system
Exterior Dimensions
Exterior Length: 27.80 "
Exterior Width: 23.60 "
Exterior Height: 21.60 "
Exterior Weight: 68.30 Pounds
Shipping Dimensions
Exterior Length: 30.00 "
Exterior Width: 26.00 "
Exterior Height: 24.00 "
Exterior Weight: 71.00 Pounds
